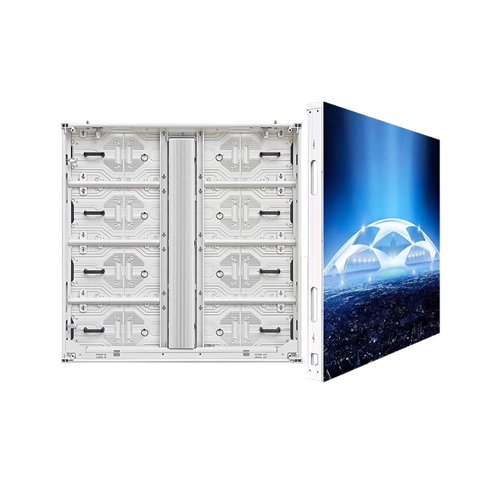

Facade-R500 Series
Fine Pitch Fixed LED Display For Outdoor Digital Use
Experience sharp, high-resolution outdoor visuals with our fine pitch LED display, built for durability and brilliant colors.
Energy Saving Outdoor Screen LED for Digital Advertising Core Advantages
Our fine pitch fixed LED screen brings clear, vivid content outdoors, combining weatherproof design with seamless performance
01
Unmatched Visual Clarity
High definiti on outdoor LED display Delivers high resolution at close range, enhancing engagement in busy pedestrian areas.
02
Weatherproof Reliability
The IP66 protection rating ensures a high level of defense against water, dust, moisture, mold, and salt spray.
03
High contrast ratio
High-contrast LED screen for optimal visibility and clarity outdoors, ensuring sharp and vibrant images and text even in bright sunlight.
Energy Saving Outdoor Screen LED for Digital Advertising Design Highlights
Deliver eye-catching outdoor advertising with fine pitch LED displays, offering superior clarity and wide-angle visibility

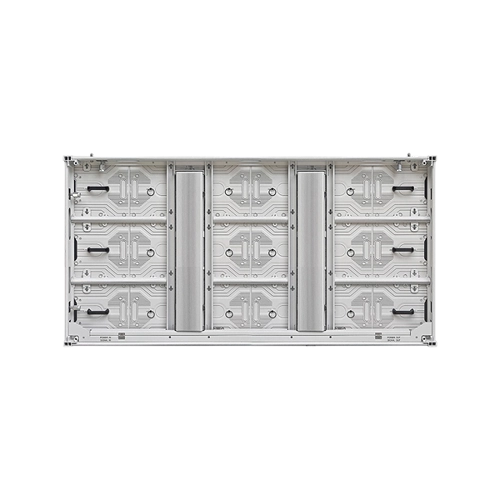

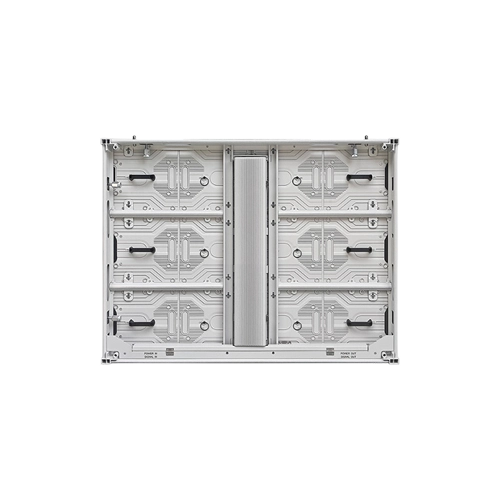

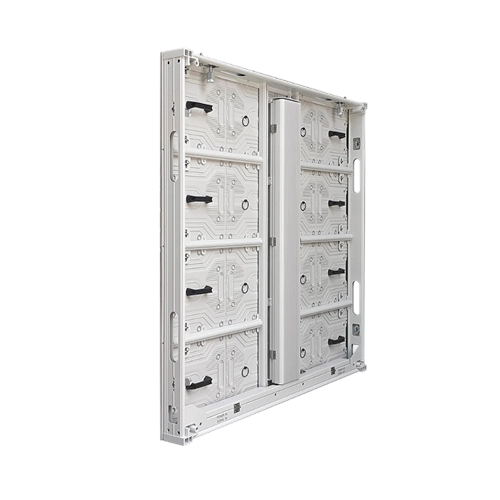

Lightweight Cabinet Design
The panel that consists of 6 aluminum modules weighs only 25KG.
Quick and easy to install.
Flexible mounting options.

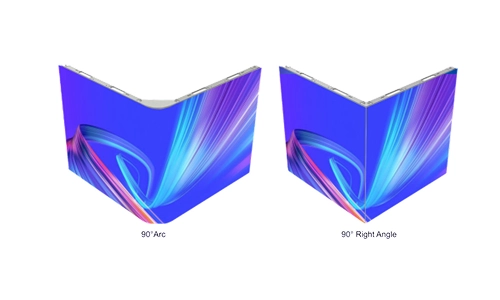

Corner Tiling Capability
The panels support seamless tiling, ensuring good pixel alignment and color uniformity across architectural surfaces and edges.
Excellent alignment and uniformity.
Seamless Integration.

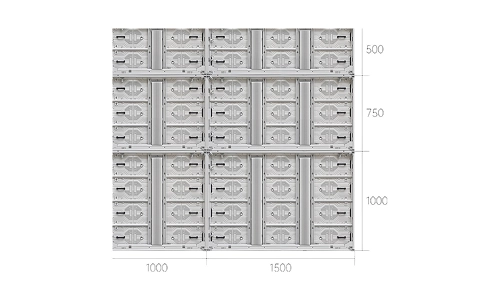

Standard & Customized Size Available
This display offers customizable dimensions and modular configurations to fit unique façade layouts, branding needs, or unconventional outdoor spaces.
Various available sizes for different needs.
Flexibly fit into irregular installation surface.

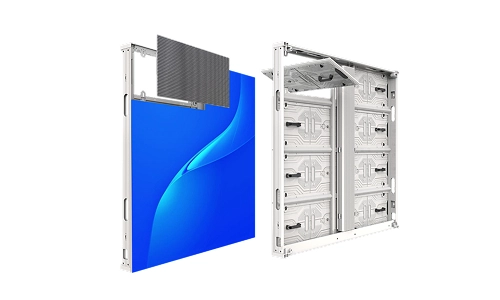

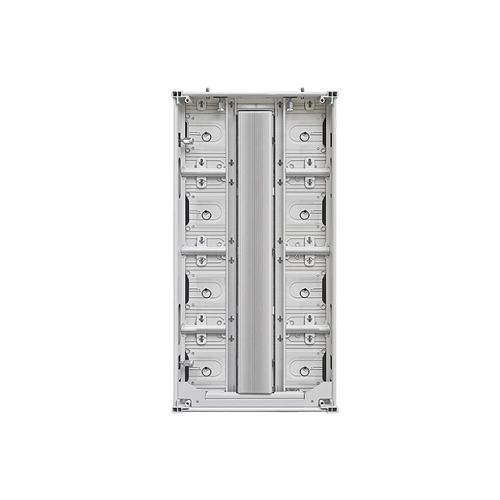

Front and Rear Serviceability
The design supports front and rear service, allowing quick module replacement and power box maintenance to minimize downtime.
LED side can be access directly from front.
PSU and control unit can be accessed from rear side.
Energy Saving Outdoor Screen LED for Digital Advertising Video
High-definition fine pitch LED displays for outdoor use, ensuring vibrant images, strong brightness, and all-weather reliability

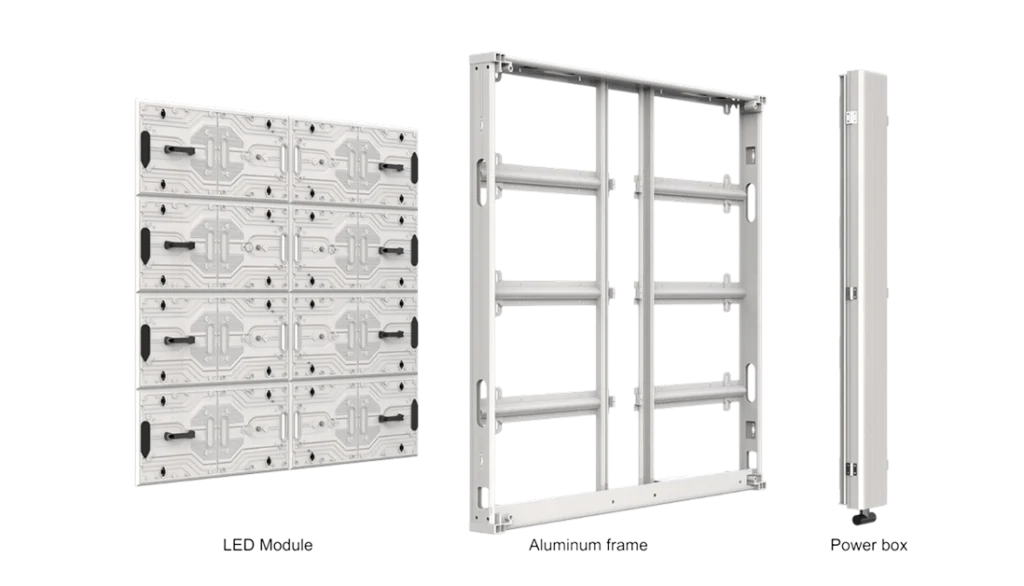

Energy Saving Outdoor Screen LED for Digital Advertising Structure
Enhance your outdoor digital signage with fine pitch LED screens, featuring crisp visuals, lasting durability, and brilliant colors.
Energy Saving Outdoor Screen LED for Digital Advertising Application Scenarios
Turn every outdoor space into a visual spectacle with high-res, fine pitch LED displays built for all-weather use.

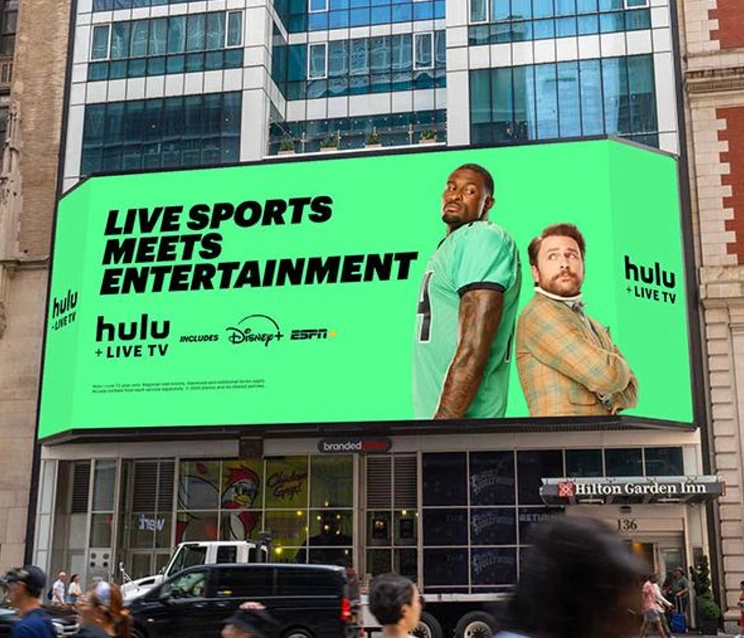

Architectural Art Installations
Fine pitch outdoor LED displays offer vivid colors, and seamless integration with building structures, ideal for architectural art projects.

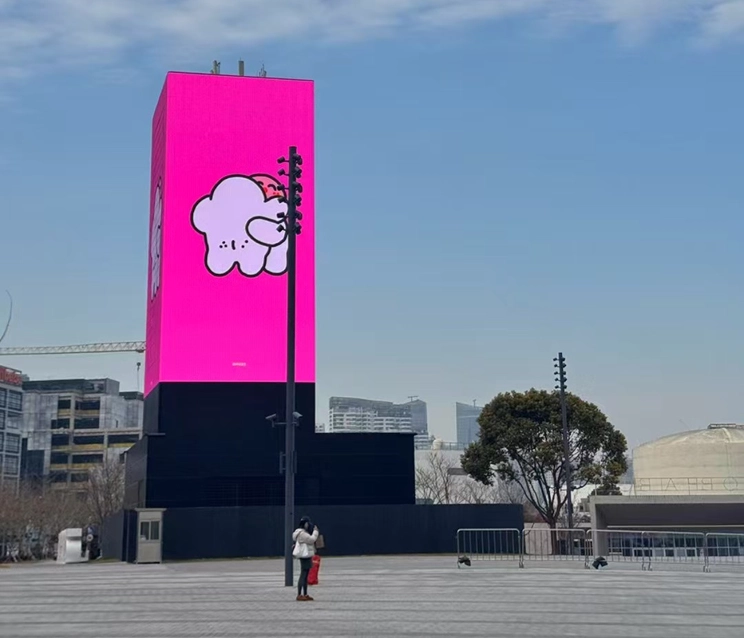

Building Facade Media Display
The system offers uniform brightness, fine pixel density, and stable performance, ideal for turning building facades into high-impact media surfaces.

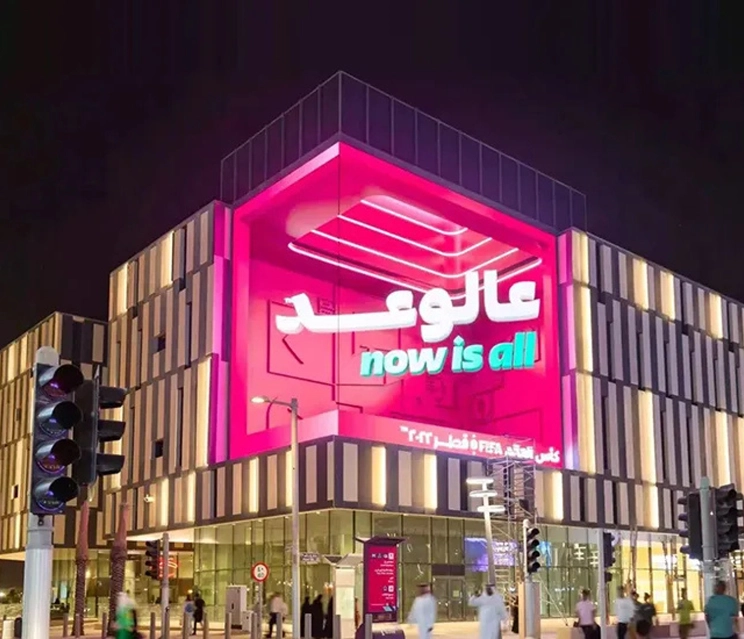

Retail and Shopping Mall Promotion
Fine pitch outdoor LED screens attract foot traffic to retail centers and malls with dynamic ads and engaging promotions.

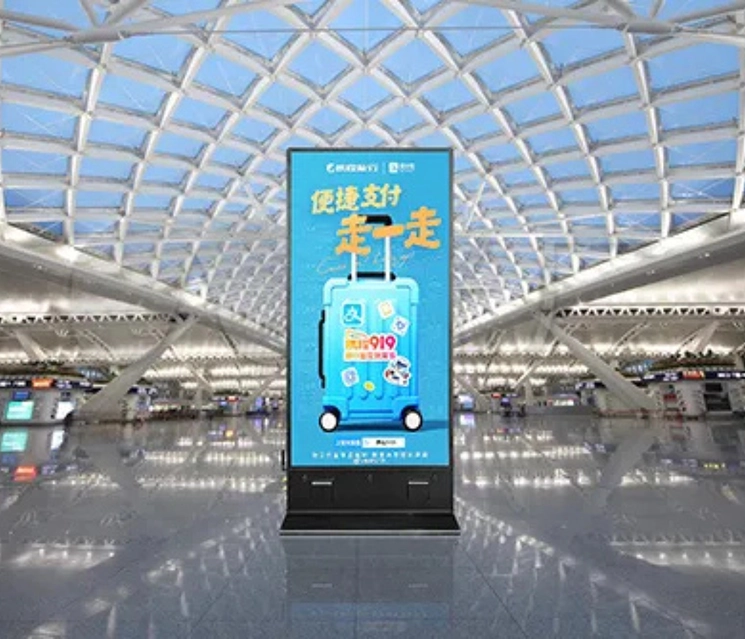

Transportation Hub Information Display
The display provides clear, high-resolution content in transportation hubs, supporting passenger information, directions, and safety messages.
Architectural Art Installations
Fine pitch outdoor LED displays offer vivid colors, and seamless integration with building structures, ideal for architectural art projects.
Building Facade Media Display
The system offers uniform brightness, fine pixel density, and stable performance, ideal for turning building facades into high-impact media surfaces.
Retail and Shopping Mall Promotion
Fine pitch outdoor LED screens attract foot traffic to retail centers and malls with dynamic ads and engaging promotions.
Transportation Hub Information Display
The display provides clear, high-resolution content in transportation hubs, supporting passenger information, directions, and safety messages.
Energy Saving Outdoor Screen LED for Digital Advertising Features & Functions
Fine pitch LED screens: sharp, bright, and durable—perfect for outdoor digital advertising that stands out.
High-Precision Visuals
Fine pitch LEDs ensure crisp outdoor images with vivid colors, stable brightness, and seamless viewing from any angle.
Robust Outdoor Durability
Engineered for harsh environments, the display delivers reliable outdoor performance with strong weatherproof protection.
Seamless Content Delivery
The fine pitch design offers smooth, detailed visuals, ensuring clear messaging for outdoor advertising and public displays.
Efficient Heat Management
Advanced cooling systems maintain stable operation, preventing overheating and ensuring consistent outdoor performance.
Wide-Angle Visibility
Optimized viewing angles provide clear, bright visuals from multiple directions, perfect for high-traffic outdoor locations.
High-Brightness Output
Powerful brightness levels cut through sunlight, delivering sharp, vivid content for outdoor digital signage throughout the day.
Energy Saving Outdoor Screen LED for Digital Advertising Specifications
Experience crisp, vivid outdoor visuals with fine pitch LED screens designed for maximum impact and durability.
Key Technical Specification
Pixel Pitch
P2.9–P10.4
Enhances image detail.
Brightness Level
4500–9000 nits
Ensures daylight visibility.
Refresh Rate
3840–7680Hz
Delivers smooth motion.
Maintenance way
Front&Rear
Quick maintenance
IP Protection
IP66 Front / Rear
Provides outdoor safety.
Viewing Angle
160° / 140°
Improves visibility range.
Facade-R500 Series Comparison
Model
Facade-L1000-P2.9
Facade-L1000-P3.9
Facade-L1000-P4.8
Facade-L1000-P6.25
Facade-L1000-P7.8
Facade-L1000-P10.4
Pixel Pitch (mm)
2.976
3.91
4.81
6.25
7.81
10.4
Pixel Density(Dot/㎡）
112896
65536
43264
25600
16384
9216
LED Type
SMD1415
SMD1415
SMD1921
SMD2727
SMD2727
SMD2727
Pixel Configuration
1R1G1B
1R1G1B
1R1G1B
1R1G1B
1R1G1B
1R1G1B
Module Size（mm）
500*250
500*250
500*250
500*250
500*250
500*250
Module Resolution（Pixel）
168*84
128*64
104*52
80*40
64*32
48*24
Cabinet Size（mm）
1000×1000×85mm
Cabinet Resolution(Pixel)
336*336
256*256
208*208
160*160
128*128
96*96
Brightness(nits)
6000
6000-10000(Optional)
6000-10000(Optional)
6000-10000(Optional)
6000-10000(Optional)
6000-10000(Optional)
Drive Mode
1/21 scan
1/8 scan
1/7 scan
1/5 scan
1/4 scan
1/2 scan
Material
Profile Aluminum
Panel Weight (（kg/pcs）
25kg
Viewing Angle(V/H)
140°/120°
Grayscale(Bit）
14-16
Refresh Rate (Hz)
3840-7680
Contrast Ratio
8000：1
Color Temperature（K）
6500-9000 optional
Color Uniformity
97%/±0.003
Operating Voltage
AC100~240V
Maximum Power consumption(W/㎡)
550
Average Power Consumption(W/㎡)
186
Maintenance Type
Front & Rear
IP Rating
IP65 for front and back
Operating Temperature(℃)
-30~60℃
Operating Humidity(%RH)
10%~98%
Storage Temperature(℃)
-40~60℃
Storage Humidity(%RH)
10%~98%
Lifespan(H)
100000
Energy Saving Outdoor Screen LED for Digital Advertising FAQ
Find answers to common questions about L800 Series outdoor LED display, including installation, resolution, pixel pitch, and more.
01
What are the available pixel pitch options for the Facade-L800 Series outdoor LED display?
The Facade-L800 is available in the following options: P3.125, P4.1, P5, P6.25, P8.33, and P10.
02
Does this cabinet support front service access for both the LED modules and the power box?
Yes. The module employs a mechanical locking mechanism for secure fastening, enabling installation and removal from either the front or the rear of the display panel. Similarly, the power box can be installed and removed from either side.
With a universal design that supports both front and rear maintenance, it is compatible with all application scenarios, thus reducing customer costs for spare parts and maintenance.
03
What is the IP rate for this cabinet?
For the module: The module boasts a fully sealed, independent waterproof design, with an IP65 protection rating for both the front and rear.
For the cabinet: It also has an IP65 protection rating for both the front and rear.
04
Does this cabinet support right-angle and curved configurations?
This cabinet does not have a 45-degree cut, so it cannot be spliced at a 90-degree right angle. However, it features a corner design that supports curved splicing, making it adaptable to building corners and creating a seamless, glasses-free 3D effect.
05
Could you please provide the operating temperature range for this LED display?
The LED display is designed to function reliably in harsh environments, with an operating temperature range of -20°C to +60°C. This ensures extended operational longevity and enhances advertising effectiveness.
