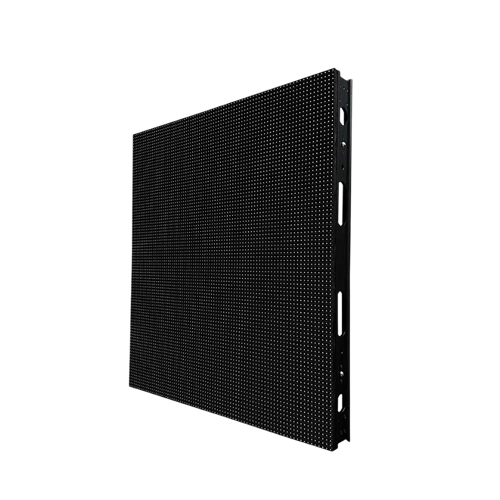

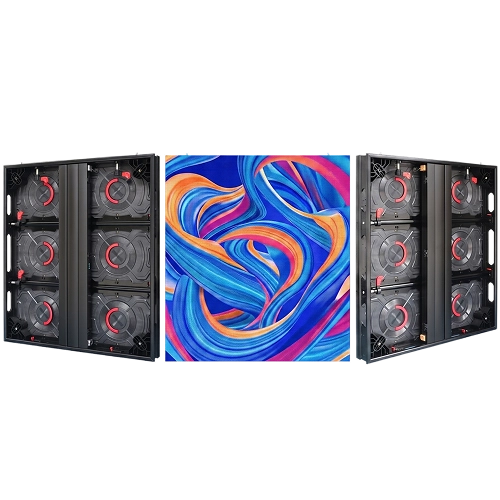

Facade-L800 Series
Energy Saving Outdoor Screen LED for Digital Advertising
Unique cabinet design in 800×900mm and 800×1200mm sizes, with high flatness. Features front service for easy installation, energy-saving LED screen。
Energy Saving Outdoor Screen LED for Digital Advertising Core Advantages
The L800 Series, using Common Cathode Technology, reduces operational costs while providing high-visibility content in demanding environments.
01
Common cathode technology
Common cathode technology can help to reduce power consumption by more than 30% compared to traditional common anode screens.
02
Matte corrugation mask
The matte corrugation mask, with fine parallel grooves, reduces unwanted reflections to deliver ultra-high contrast and more vivid visual experience.
03
All-Weather Reliability
The robust, waterproof, and heat-resistant design guarantees reliable 24/7 performance even in harsh outdoor conditions.
Energy Saving Outdoor Screen LED for Digital Advertising Design Highlights
The durable and front/rear maintenance make this LED display a long-term, cost-effective, and eco-friendly advertising solution.
High-Brightness Outdoor Use
Designed for outdoor environments, the screen delivers clear, vibrant visuals even under direct sunlight, ensuring excellent visibility.
Bright LED panels maintain clarity in daylight.
Ideal for billboards, signage, and public spaces.
Innovative Ultra-Light Cabinet Design
The lightweight cabinet simplifies installation, reducing labor. It also reduces the structural cost for large screens.
Only 17.5kg for 800x900mm cabinet.
Only 22.5kg for 800x1200mm cabinet.

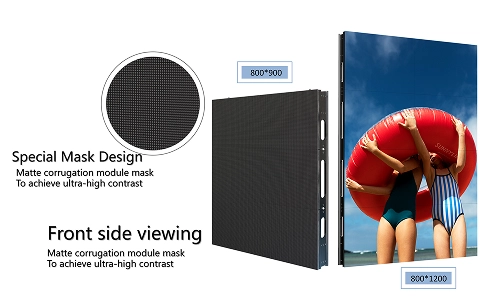

Special Matt Mask Design
Equipped with a protective front matte mask, the display ensures higher contrast while shielding the LED modules from dust, rain, and external damage.
Enhances visual contrast and sharpn.
Protection against weather and physical impacts.

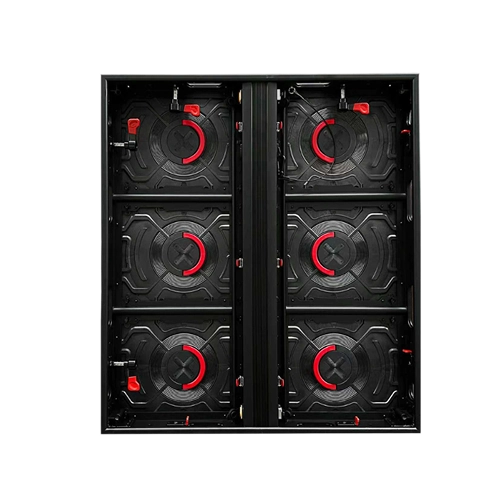

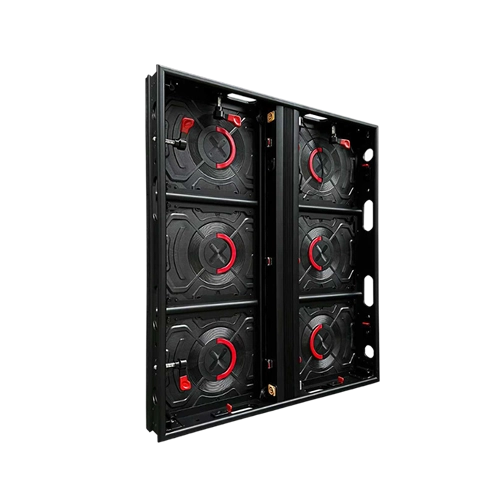

Front and Rear Maintenance
The modular design allows both front and rear access for maintenance, enabling quick servicing without disassembling the entire screen.
Simplifies repair and replacement of components.
Reduces downtime and maintenance costs.

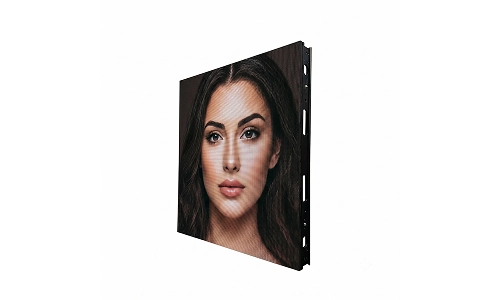

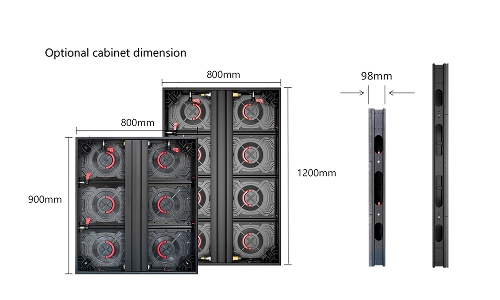

Various Sizes Available
Fit for more installation layouts with modules of various sizes and shapes to form the ultimate screen.
Meet various aspect ratios
Fit into different layouts
Energy Saving Outdoor Screen LED for Digital Advertising Video
This high-brightness, energy-efficient LED display offers excellent visibility, and durable performance in all weather.

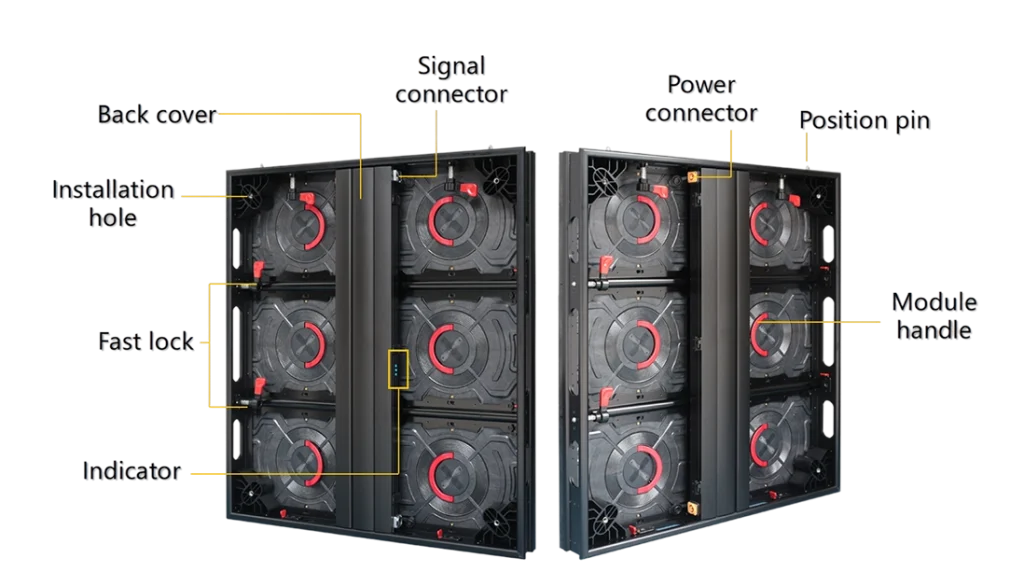

Energy Saving Outdoor Screen LED for Digital Advertising Structure
Our outdoor LED display offers clear daylight visibility, low energy use, and durable performance for continuous outdoor impact.
Energy Saving Outdoor Screen LED for Digital Advertising Application Scenarios
Our outdoor LED display attracts attention with vivid visuals, boosting ad visibility, driving conversions, and maximizing revenue.

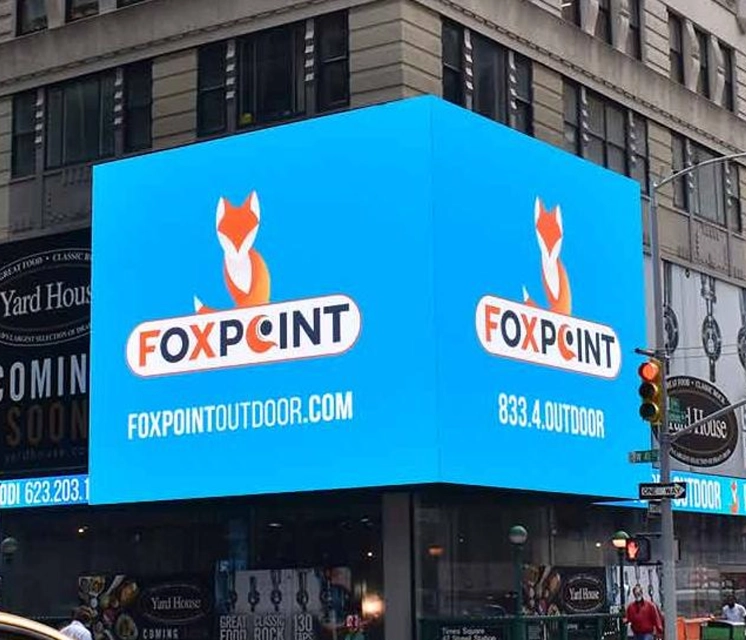

Bank Branch Promotions
The outdoor LED screen highlights financial products and services, attracting customer attention and enhancing brand visibility at branch locations.

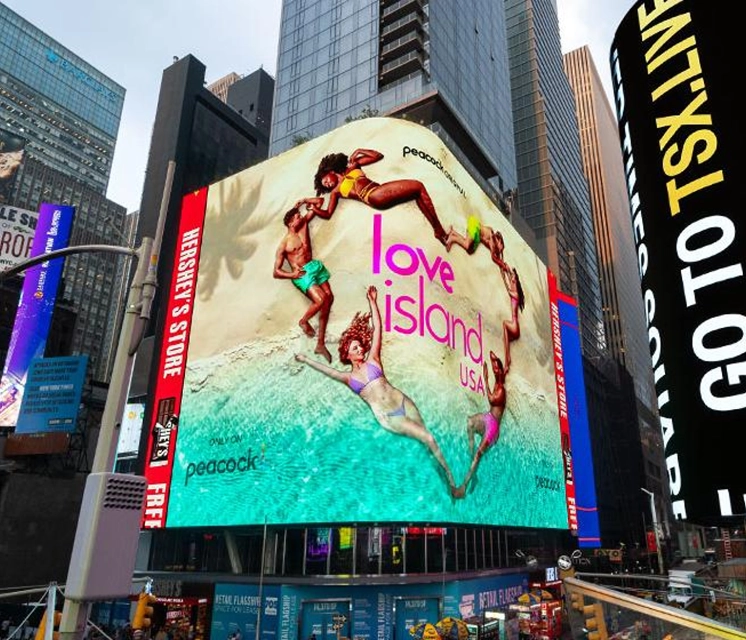

Building Facade Displays
The bright LED display ensure the content is clearly visible even from a great distance.Ideal for commercials.

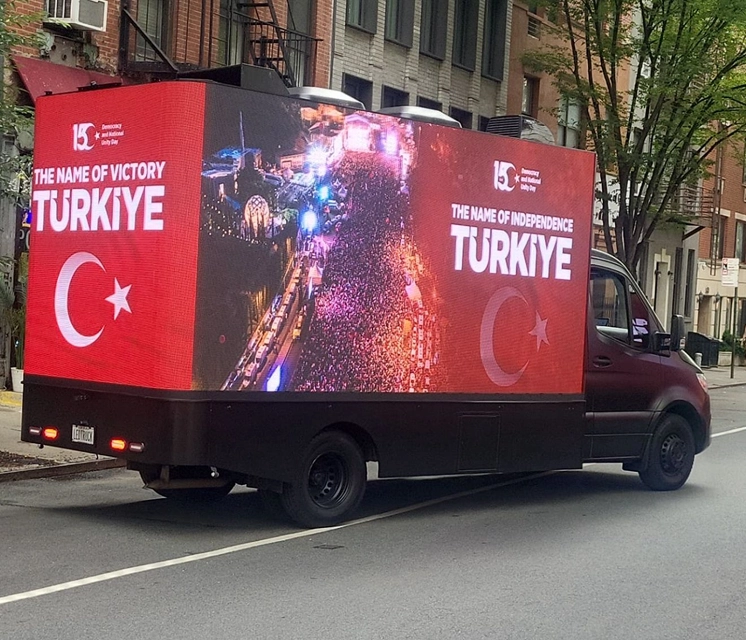

Mobile Advertising Platforms
Mounted on vehicles or temporary structures, the energy-saving LED screen delivers dynamic campaigns while moving through high-traffic urban areas.

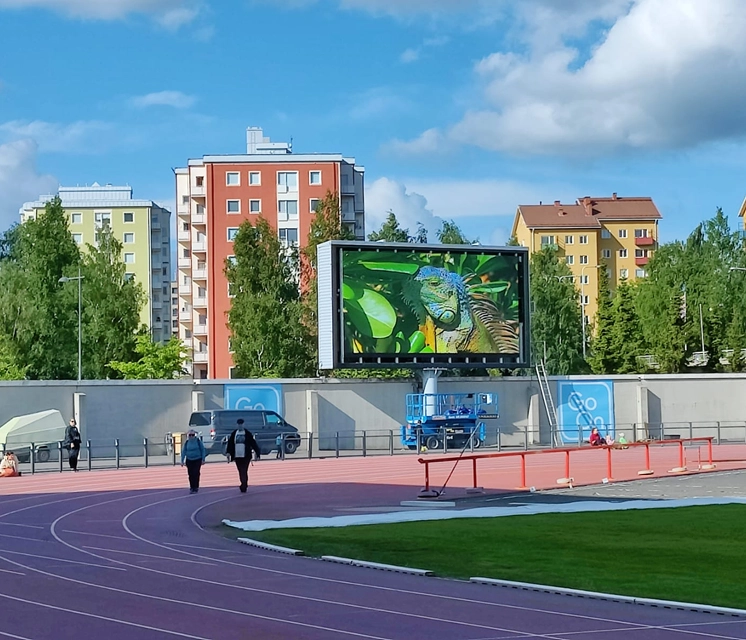

Stadium and Sports Venues
Used in sports arenas, the outdoor LED screen displays live scores, replays, and promotional content, engaging audiences throughout events.
Bank Branch Promotions
The outdoor LED screen highlights financial products and services, attracting customer attention and enhancing brand visibility at branch locations.
Building Facade Displays
The bright LED display ensure the content is clearly visible even from a great distance.Ideal for commercials.
Mobile Advertising Platforms
Mounted on vehicles or temporary structures, the energy-saving LED screen delivers dynamic campaigns while moving through high-traffic urban areas.
Stadium and Sports Venues
Used in sports arenas, the outdoor LED screen displays live scores, replays, and promotional content, engaging audiences throughout events.
Energy Saving Outdoor Screen LED for Digital Advertising Features & Functions
Our outdoor LED billboard grabs attention with dynamic clarity, ensuring steady audience engagement, stronger ad impact, and higher sales returns.
7680Hz refresh rate
A 7680Hz refresh rate for outdoor LED screens delivers premium, ultra-smooth motion with near-zero flickering.
Fast heat dissipation
Operates reliably in harsh environments, provides extended runtime, and significantly boosts advertising effectiveness.
Multiple Pixel Pitch Options
Available multiple pixel pitches for various viewing distance, ensuring flexible deployment for different project need.
Ultra-wide 160°viewing angle
160 viewing angles are designed to minimize blind spots and provide comprehensive visual coverage.
High Contrast 10000:1
High contrast ratios enrich image depth and visibility even in strong ambient light or direct sunlight.
Weather-Resistant IP65
Built with durable materials and high IP protection to withstand dust, moisture, and harsh weather for reliable outdoor use.
Energy Saving Outdoor Screen LED for Digital Advertising Specifications
The new L800 Series is designed for outdoor fixed installation. It is lightweight, slim, can be wall mounting without a steel structure.
Key Technical Specification
Brightness Level
6000–9000 nits
Clear visibility under sunlight.
Pixel Pitch
P3-P10
Support varied viewing ranges.
Power Efficiency
Up to 30% saving
Reducing the electricity bill.
Refresh Rate
3840–7680Hz
Smooth motion for vivid video.
IP Protection
IP65 Rated
Built to resist harsh weather.
Cabinet size
800x1200 mm
Aluminum cabinet frame.
Facade-L800 Series Comparison
Model
Facade-L800-P3.125
Facade-L800-P4.16
Facade-L800-P5
Facade-L800-P6.25
Facade-L800-P8.33
Facade-L800-P10
Pixel Pitch (mm)
3.125
4.16
5
6.25
8.3
10
Pixel Density(Dot/㎡）
102400
57600
40000
25600
14400
10000
LED Type
SMD1415
SMD1921
SMD1921
SMD2727
SMD2727
SMD2727
Pixel Configuration
1R1G1B
1R1G1B
1R1G1B
1R1G1B
1R1G1B
1R1G1B
Module Size（mm）
400*300
400*300
400*300
400*300
400*300
400*300
Module Resolution（Pixel）
128*96
96*72
80*60
64*48
48*36
40*30
Cabinet Size（mm）
800*900*98 / 800*1200*98
Cabinet Resolution(Pixel)
256*288
256*384
192*216
192*288
160*180
160*240
128*144
128*192
96*108
96*144
80*90
80*120
Brightness(nits)
5500
6500
6500
6500
6500
6500
Drive Mode
1/16 scan
1/16 scan
1/16 scan
1/16 scan
1/3 scan
1/2 scan
Material
Aluminum
Panel Weight (（kg/pcs）
17.5kg / 22.5kg
Viewing Angle(V/H)
160°/140°
Grayscale(Bit）
14
Refresh Rate (Hz)
3840-7680
Contrast Ratio
10000：1
Color Temperature（K）
5000-12000 Optional
Color Uniformity
97%/±0.003
Operating Voltage
AC90-264V,47-63Hz
Maximum Power consumption(W/㎡)
780
Average Power Consumption(W/㎡)
200-300
Maintenance Type
Front & Rear
IP Rating
IP65 for front and back
Operating Temperature(℃)
-20~60℃
Operating Humidity(%RH)
10%~85%
Storage Temperature(℃)
-20~60℃
Storage Humidity(%RH)
10%~85%
Lifespan(H)
100000
Energy Saving Outdoor Screen LED for Digital Advertising FAQ
Find answers to common questions about L800 Series outdoor LED display, including installation, resolution, pixel pitch, and more.
01
What are the available pixel pitch options for the Facade-L800 Series outdoor LED display?
The Facade-L800 is available in the following options: P3.125, P4.1, P5, P6.25, P8.33, and P10.
02
Does this cabinet support front service access for both the LED modules and the power box?
Yes. The module employs a mechanical locking mechanism for secure fastening, enabling installation and removal from either the front or the rear of the display panel. Similarly, the power box can be installed and removed from either side.
With a universal design that supports both front and rear maintenance, it is compatible with all application scenarios, thus reducing customer costs for spare parts and maintenance.
03
What is the IP rate for this cabinet?
For the module: The module boasts a fully sealed, independent waterproof design, with an IP65 protection rating for both the front and rear.
For the cabinet: It also has an IP65 protection rating for both the front and rear.
04
Does this cabinet support right-angle and curved configurations?
This cabinet does not have a 45-degree cut, so it cannot be spliced at a 90-degree right angle. However, it features a corner design that supports curved splicing, making it adaptable to building corners and creating a seamless, glasses-free 3D effect.
05
Could you please provide the operating temperature range for this LED display?
The LED display is designed to function reliably in harsh environments, with an operating temperature range of -20°C to +60°C. This ensures extended operational longevity and enhances advertising effectiveness.
