Pica-X3 Series
16:9 Fine Pitch Display Screen with COB LED Module
The 16:9 COB fine-pitch display offers ultra-smooth imaging, strong surface protection, and vibrant colors, ideal for high-end control rooms and studios.
16:9 Fine Pitch Display Screen with COB LED Module Core Advantages
Experience stunning clarity with the 16:9 COB fine-pitch screen, designed for immersive visuals, long-life performance, and stable operation in demanding venues.
01
Superior COB Durability & Protection
The COB fine-pitch module features a highly robust surface with enhanced impact resistance, moisture protection, and anti-collision performance. This ensures long-lasting reliability, making the 16:9 display ideal for demanding indoor environments with frequent operation.
02
Seamless UHD Visual Consistency
With a native 16:9 ratio and ultra-fine pixel pitch, the display delivers exceptional uniformity, deep contrast, and smooth color transitions. Its precise splicing capability creates a bezel-free large canvas, offering premium UHD visual performance for control rooms and corporate spaces.
03
Efficient Heat & Energy Management
The COB structure optimizes thermal performance to maintain stable brightness, reduce power loss, and extend the overall service life. This efficiency not only supports 24/7 operation but also significantly lowers energy consumption for large-scale fixed installations.
16:9 Fine Pitch Display Screen with COB LED Module Design Highlights
The 16:9 fine-pitch COB display delivers precise pixel integrity, glare-free imaging, and exceptional uniformity, making it perfect for premium indoor applications.

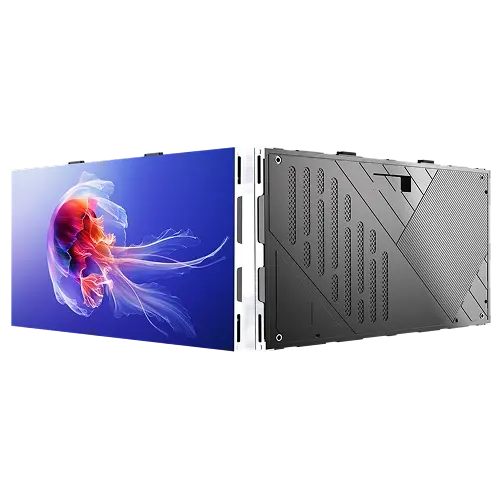

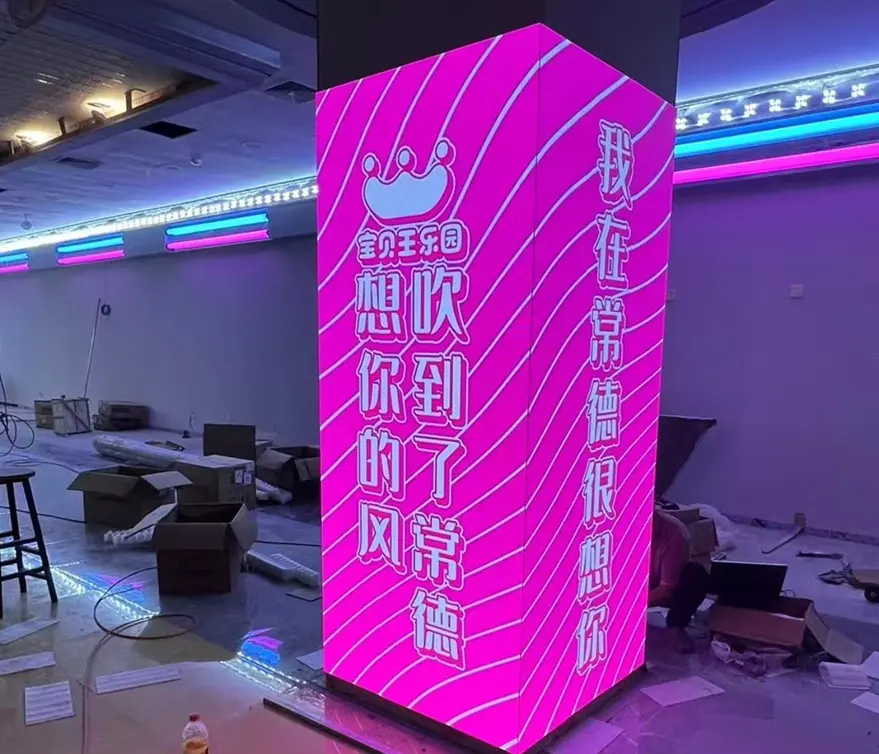

90° Right-Angle Splicing Design
The COB fine-pitch screen supports precise 90° corner splicing, enabling creative architectural displays with clean edges and a unified visual effect.
Achieves seamless corner alignment for sharp angles.
Delivers stable visuals without distortion at edges.
Front-Serviceability Structure
Its front-maintenance design allows quick access to modules, power units, and cables, ensuring efficient servicing in compact installation environments.
Enables easy module removal from the front side.
Reduces downtime with fast component replacement.
Zero-Bezel Seamless Integration
The display delivers ultra-tight cabinet alignment, forming a smooth visual plane without visible gaps, ideal for premium fine-pitch walls.
Maintains perfect flatness across all panels.
Ensures consistent uniformity for large walls.
Standard 16:9 Modular Form Factor
Designed with a native 16:9 ratio, the module fits UHD layouts perfectly, simplifying large-screen expansion while keeping pixel mapping precise.
Matches 1080p and 4K resolutions naturally.
Simplifies multi-panel splicing with standard sizing.
16:9 Fine Pitch Display Screen with COB LED Module Video
The 16:9 fine pitch display screen, equipped with a COB (Chip-On-Board) LED module, offers high-resolution video capabilities, providing clear and detailed visuals for a wide range of applications.

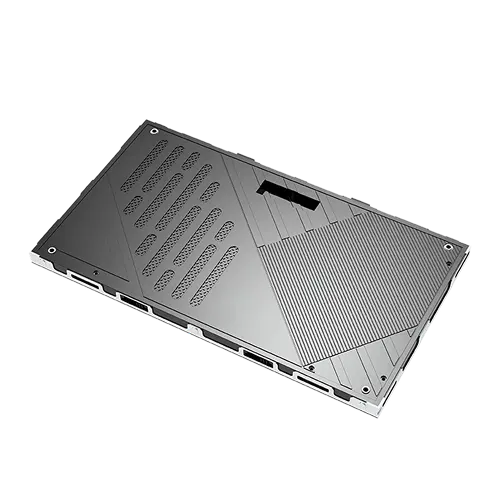

16:9 Fine Pitch Display Screen with COB LED Module Structure
16:9 COB fine-pitch screen ensures high contrast, seamless splicing, and strong reliability, enabling crisp content playback in corporate and broadcast environments.
16:9 Fine Pitch Display Screen with COB LED Module Application Scenarios
This 16:9 COB LED screen provides smooth gradients, superior durability, and wide viewing, creating an impactful visual platform for presentations and digital signage.

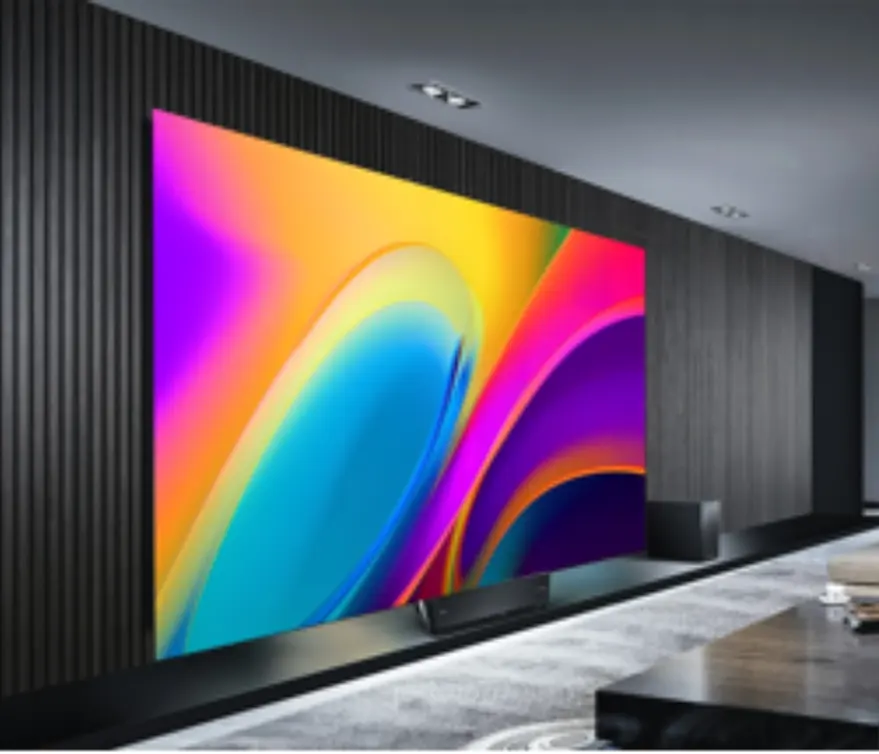

Conference Room Presentation Displays
The 16:9 COB fine-pitch screen delivers sharp clarity, wide viewing angles, and seamless large-format visuals, enabling efficient communication, detailed data display, and high-end meeting experiences in modern conference environments.

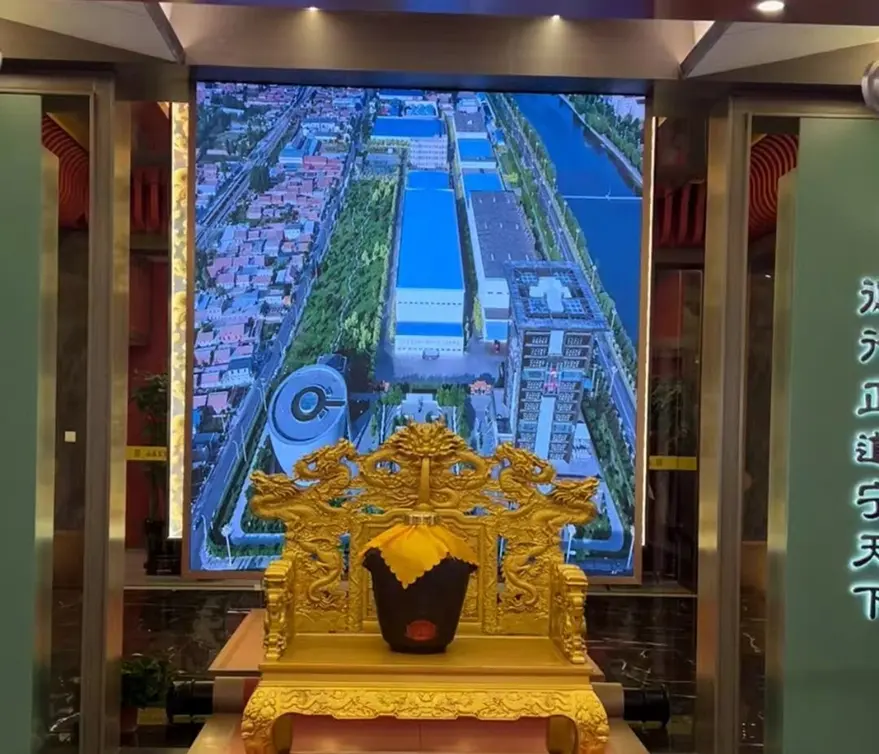

Hotel Ballroom Event Screens
In hotel banquet halls, the display provides premium brightness and superior uniformity, ensuring elegant image reproduction for weddings, business events, and ceremonies requiring reliable large-scale visual impact.
Exhibition Hall Showcase Displays
The COB fine-pitch screen offers high contrast and excellent detail, ensuring immersive product demonstrations, brand storytelling, and multimedia showcases that attract visitors in modern exhibition or museum spaces.

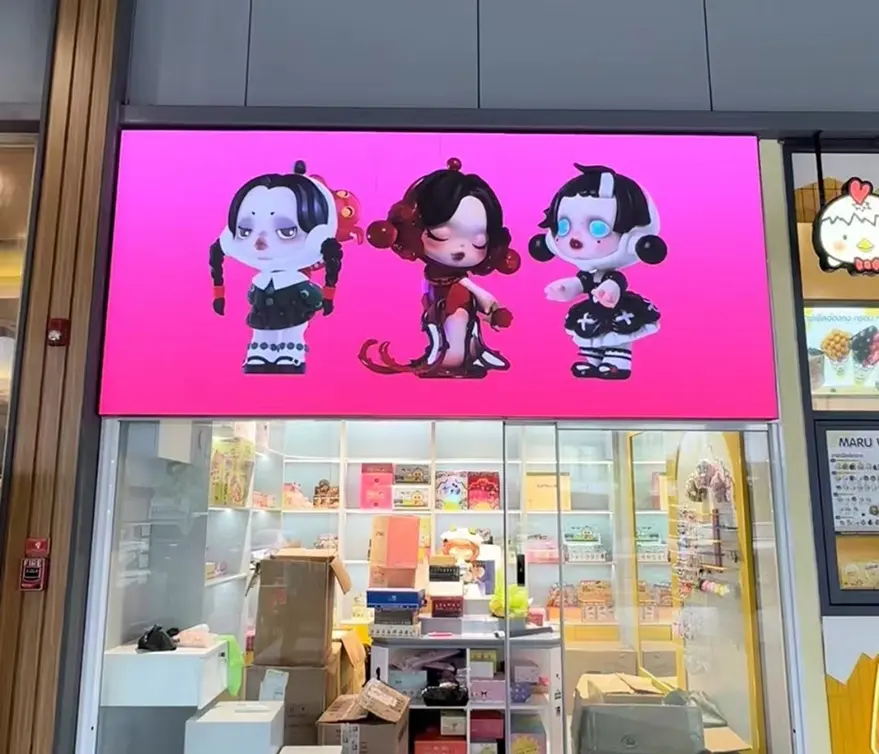

Retail Store Digital Signage
For malls and retail venues, the display delivers smooth motion, vivid color, and stable all-day operation, enabling striking promotional content and dynamic visual marketing that drives customer engagement and brand visibility.
Conference Room Presentation Displays
The 16:9 COB fine-pitch screen delivers sharp clarity, wide viewing angles, and seamless large-format visuals, enabling efficient communication, detailed data display, and high-end meeting experiences in modern conference environments.
Hotel Ballroom Event Screens
In hotel banquet halls, the display provides premium brightness and superior uniformity, ensuring elegant image reproduction for weddings, business events, and ceremonies requiring reliable large-scale visual impact.
Exhibition Hall Showcase Displays
The COB fine-pitch screen offers high contrast and excellent detail, ensuring immersive product demonstrations, brand storytelling, and multimedia showcases that attract visitors in modern exhibition or museum spaces.
Retail Store Digital Signage
For malls and retail venues, the display delivers smooth motion, vivid color, and stable all-day operation, enabling striking promotional content and dynamic visual marketing that drives customer engagement and brand visibility.
16:9 Fine Pitch Display Screen with COB LED Module Features & Functions
The 16:9 COB fine-pitch display enhances image depth, reduces reflection, and ensures consistent brightness, supporting mission-critical operations with precision.
Ultra-Fine Visual Clarity
The COB fine-pitch screen delivers sharp detail, smooth gradients, and uniform brightness, ensuring premium 16:9 UHD viewing for control rooms and high-end indoor spaces.
Robust Surface Protection
Its COB package structure provides strong impact resistance and anti-collision durability, keeping the display stable and reliable even under frequent touch or close-range operation.

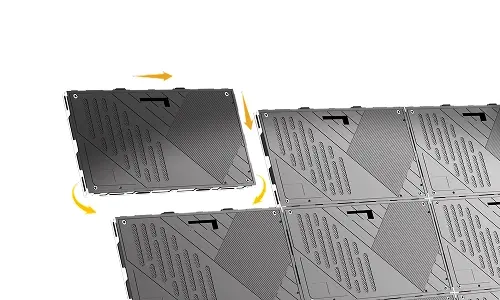

Seamless 16:9 Splicing
The modular 16:9 panel design enables accurate alignment and bezel-free splicing, creating a perfectly unified large display wall for corporate, studio, and commercial environments.
Wide Viewing Performance
With optimized optics and a 160° wide viewing range, the display maintains consistent brightness and color accuracy, delivering clear visuals from any perspective.
High Refresh & Low Latency
A high refresh rate ensures smooth motion reproduction and flicker-free output, supporting real-time content, broadcast workflows, and dynamic presentation needs.
Energy-Efficient Operation
The COB structure improves heat dissipation efficiency and reduces power consumption, enabling long-term stable operation and lower operating costs for 24/7 applications.
16:9 Fine Pitch Display Screen with COB LED Module Specifications
Designed for modern spaces, the 16:9 COB fine-pitch screen delivers rich colors, stable output, and sleek integration, elevating conference and showroom experiences.
Key Technical Specification
Pixel Pitch
0.9–1.5mm
Ensures high-detail clarity.
Panel Ratio
16:9
Supports UHD modular design.
Brightness
600–800 nits
Delivers vivid indoor output.
Refresh Rate
≥3840Hz
Provides smooth motion display.
Contrast Ratio
5000:1
Enhances image depth quality.
Viewing Angle
160°/160°
Ensures wide visual coverage.
Module Tech
COB Design
Improves strength and uniformity.

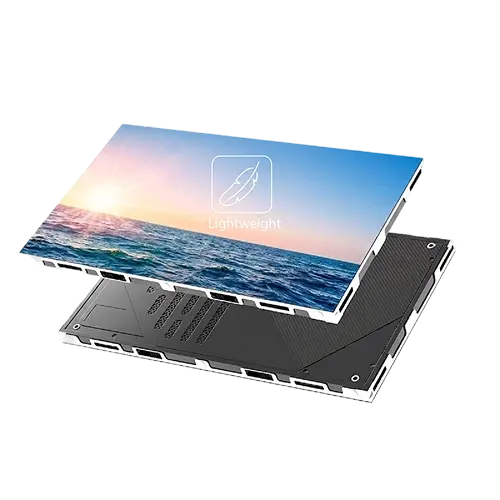

Panel Weight
≤5.5kg
Allows easier wall mounting.
Facade-L800 Series Comparison
Model
Krystal-X-P0.6
Krystal-X-P0.7
Krystal-X-P0.9
Krystal-X-P1.2
Krystal-X-P1.5
Krystal-X-P1.8
Pixel Pitch (mm)
0.625
0.78
0.9375
1.25
1.5625
1.875
Pixel Density(Dot/㎡）
2560000
1638400
1137778
640000
409600
284444
LED Type
COB
COB
COB
COB
COB
COB
Pixel Configuration
Flip chip
Flip chip
Flip chip
Flip chip
Flip chip
Flip chip
Module Size（mm）
150*168.75
150*168.75
150*168.75
150*168.75
150*168.75
150*168.75
Module Resolution（Pixel）
240*270
192*216
160*180
120*135
96*108
80*90
Cabinet Size（mm）
600*337.5*27.5mm
Cabinet Resolution(Pixel)
960*540
768*432
640*360
480*270
384*216
320*180
Brightness(nits)
5500
600
600
600
600
800
Drive Mode
1/64 Scan
1/64 Scan
1/60 Scan
1/60 Scan
1/48 Scan
1/45 Scan
Material
Die cast aluminum
Panel Weight (（kg/pcs）
4.5kg
Viewing Angle(V/H)
170°/170°
Grayscale(Bit）
14~16
Refresh Rate (Hz)
3840
Frame Rate/FPS(Hz)
50/60
Contrast Ratio
10000：1
Color Temperature（K）
5000-12000 Optional
Color Uniformity
≥99.8%
Operating Voltage
AC90-264V,47-63Hz
Maximum Power consumption(W/㎡)
420
Average Power Consumption(W/㎡)
80-150
Maintenance Type
Front service
IP Rating
IP31
Operating Temperature(℃)
-20~60℃
Operating Humidity(%RH)
10%~85%
Storage Temperature(℃)
-20~60℃
Storage Humidity(%RH)
10%~85%
Lifespan(H)
100000
16:9 Fine Pitch Display Screen with COB LED Module FAQ
Its 16:9 COB fine-pitch module enables ultra-clear visuals, hard-surface protection, and low maintenance, making it a reliable choice for continuous indoor display use.
01
What are the key benefits of using a 16:9 fine-pitch display with COB LED module technology?
It delivers higher durability, seamless UHD visual consistency, better impact resistance, and superior uniformity compared with traditional SMD solutions.
02
How does the 16:9 aspect ratio help when building large indoor video walls for professional applications?
The 16:9 ratio allows panels to scale naturally into FHD and 4K resolutions, ensuring pixel-accurate splicing and simplified system design.
03
Is the COB fine-pitch LED display suitable for close-view indoor environments such as conference rooms or control centers?
Yes, its ultra-fine pixel pitch, high contrast ratio, and stable surface properties make it ideal for close-range, high-detail visual tasks.
04
Can this COB display support 24/7 operation in commercial and professional installations?
The COB package enhances heat dissipation, power efficiency, and long-term stability, enabling reliable continuous operation.
05
What maintenance method is typically used for a 16:9 COB fine-pitch LED display system?
Most COB modules are designed for front service, allowing direct access to LED modules, power units, and control systems for fast maintenance.
